6. Système de gestion d’un hôpital¶
Modèles logiques¶
Créez un diagramme EA pour la base de données d’un système de gestion d’hôpital, basé sur les informations données ci-dessous.

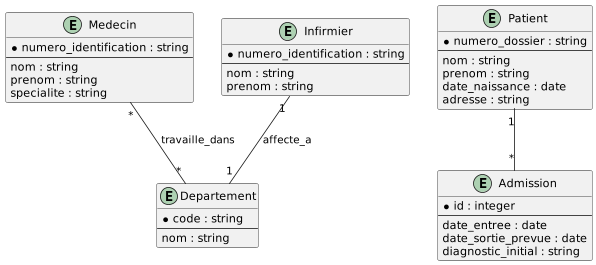

Partie 1¶
- L’hôpital a plusieurs départements (par exemple, urgences, cardiologie, pédiatrie). Chaque département a un nom unique et un code.
- Les patients sont enregistrés avec un numéro de dossier unique, un nom, un prénom, une date de naissance et une adresse.
- Les médecins travaillent dans un ou plusieurs départements. Chaque médecin a un numéro d’identification unique, un nom, un prénom et une spécialité.
- Les infirmiers sont affectés à un département spécifique. Chaque infirmier a un numéro d’identification unique, un nom et un prénom.
- Les patients peuvent être admis à l’hôpital. Une admission a une date d’entrée, une date de sortie prévue et un diagnostic initial.
Code
@startuml
entity Departement {
* code : string
--
nom : string
}
entity Patient {
* numero_dossier : string
--
nom : string
prenom : string
date_naissance : date
adresse : string
}
entity Medecin {
* numero_identification : string
--
nom : string
prenom : string
specialite : string
}
entity Infirmier {
* numero_identification : string
--
nom : string
prenom : string
}
entity Admission {
* id : integer
--
date_entree : date
date_sortie_prevue : date
diagnostic_initial : string
}
Medecin "*" -- "*" Departement : travaille_dans
Infirmier "1" -- "1" Departement : affecte_a
Patient "1" -- "*" Admission
@enduml
Diagramme

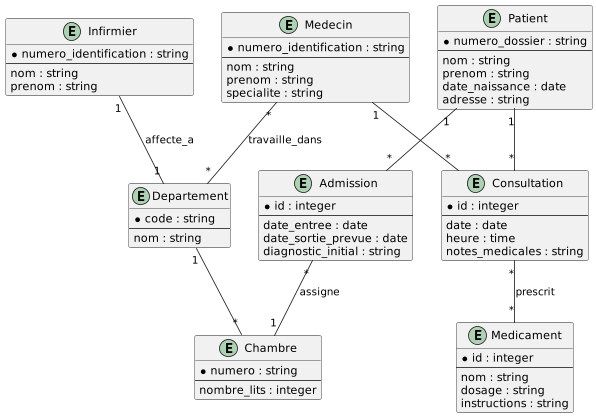

Partie 2¶
Ajoutez les éléments suivants au diagramme EA que vous avez obtenu dans la partie précédente.
- L’hôpital dispose de chambres réparties dans différents services. Chaque chambre a un numéro unique et un nombre de lits.
- Lors d’une admission, un patient est assigné à une chambre spécifique.
- Les médecins effectuent des consultations pour les patients. Une consultation a une date, une heure et des notes médicales.
- Les médicaments prescrits aux patients doivent être enregistrés. Chaque médicament a un nom, un dosage et des instructions d’administration.
Code
@startuml
entity Departement {
* code : string
--
nom : string
}
entity Patient {
* numero_dossier : string
--
nom : string
prenom : string
date_naissance : date
adresse : string
}
entity Medecin {
* numero_identification : string
--
nom : string
prenom : string
specialite : string
}
entity Infirmier {
* numero_identification : string
--
nom : string
prenom : string
}
entity Admission {
* id : integer
--
date_entree : date
date_sortie_prevue : date
diagnostic_initial : string
}
Medecin "*" -- "*" Departement : travaille_dans
Infirmier "1" -- "1" Departement : affecte_a
Patient "1" -- "*" Admission
entity Chambre {
* numero : string
--
nombre_lits : integer
}
entity Consultation {
* id : integer
--
date : date
heure : time
notes_medicales : string
}
entity Medicament {
* id : integer
--
nom : string
dosage : string
instructions : string
}
Departement "1" -- "*" Chambre
Admission "*" -- "1" Chambre : assigne
Medecin "1" -- "*" Consultation
Patient "1" -- "*" Consultation
Consultation "*" -- "*" Medicament : prescrit
@enduml
Diagramme

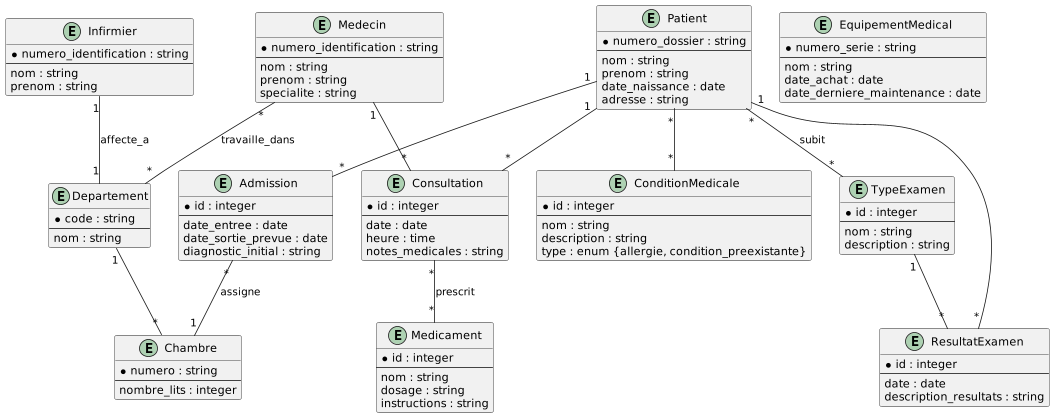

Partie 3¶
Ajoutez les éléments suivants au diagramme EA que vous avez obtenu dans la partie précédente.
- L’hôpital réalise différents types d’examens médicaux (radiographies, analyses de sang, etc.). Chaque type d’examen a un nom et une description.
- Les résultats des examens doivent être enregistrés pour chaque patient. Un résultat d’examen a une date, un type d’examen et une description des résultats.
- L’hôpital gère un inventaire de matériel médical. Chaque équipement a un numéro de série, un nom, une date d’achat et une date de dernière maintenance.
- Les patients peuvent avoir des allergies ou des conditions médicales préexistantes. Ces informations doivent être enregistrées dans leur dossier médical.
Code
@startuml
entity Departement {
* code : string
--
nom : string
}
entity Patient {
* numero_dossier : string
--
nom : string
prenom : string
date_naissance : date
adresse : string
}
entity Medecin {
* numero_identification : string
--
nom : string
prenom : string
specialite : string
}
entity Infirmier {
* numero_identification : string
--
nom : string
prenom : string
}
entity Admission {
* id : integer
--
date_entree : date
date_sortie_prevue : date
diagnostic_initial : string
}
Medecin "*" -- "*" Departement : travaille_dans
Infirmier "1" -- "1" Departement : affecte_a
Patient "1" -- "*" Admission
entity Chambre {
* numero : string
--
nombre_lits : integer
}
entity Consultation {
* id : integer
--
date : date
heure : time
notes_medicales : string
}
entity Medicament {
* id : integer
--
nom : string
dosage : string
instructions : string
}
Departement "1" -- "*" Chambre
Admission "*" -- "1" Chambre : assigne
Medecin "1" -- "*" Consultation
Patient "1" -- "*" Consultation
Consultation "*" -- "*" Medicament : prescrit
entity TypeExamen {
* id : integer
--
nom : string
description : string
}
entity ResultatExamen {
* id : integer
--
date : date
description_resultats : string
}
entity EquipementMedical {
* numero_serie : string
--
nom : string
date_achat : date
date_derniere_maintenance : date
}
entity ConditionMedicale {
* id : integer
--
nom : string
description : string
type : enum {allergie, condition_preexistante}
}
Patient "*" -- "*" TypeExamen : subit
TypeExamen "1" -- "*" ResultatExamen
Patient "1" -- "*" ResultatExamen
Patient "*" -- "*" ConditionMedicale
@enduml
Diagramme
Modèle physique¶
Code
@startuml
!define TABLE(name,desc) class name as "desc" << (T,#FFAAAA) >>
!define PK(x) <u>x</u>
!define FK(x) <i>x</i>
hide empty methods
hide empty fields
TABLE(Departement, "Departement") {
PK(id) : integer
code : string
nom : string
}
TABLE(Patient, "Patient") {
PK(id) : integer
numero_dossier : string
nom : string
prenom : string
date_naissance : date
adresse : text
}
TABLE(Medecin, "Medecin") {
PK(id) : integer
numero_identification : string
nom : string
prenom : string
specialite : string
}
TABLE(Infirmier, "Infirmier") {
PK(id) : integer
numero_identification : string
nom : string
prenom : string
FK(departement_id) : integer
}
TABLE(Admission, "Admission") {
PK(id) : integer
date_entree : date
date_sortie_prevue : date
diagnostic_initial : text
FK(patient_id) : integer
FK(chambre_id) : integer
}
TABLE(Chambre, "Chambre") {
PK(id) : integer
numero : string
nombre_lits : integer
FK(departement_id) : integer
}
TABLE(Consultation, "Consultation") {
PK(id) : integer
date : date
heure : time
notes_medicales : text
FK(medecin_id) : integer
FK(patient_id) : integer
}
TABLE(Medicament, "Medicament") {
PK(id) : integer
nom : string
dosage : string
instructions : text
}
TABLE(Prescription, "Prescription") {
PK(id) : integer
FK(consultation_id) : integer
FK(medicament_id) : integer
quantite : integer
}
TABLE(TypeExamen, "TypeExamen") {
PK(id) : integer
nom : string
description : text
}
TABLE(ResultatExamen, "ResultatExamen") {
PK(id) : integer
date : date
description_resultats : text
FK(patient_id) : integer
FK(type_examen_id) : integer
}
TABLE(EquipementMedical, "EquipementMedical") {
PK(id) : integer
numero_serie : string
nom : string
date_achat : date
date_derniere_maintenance : date
}
TABLE(ConditionMedicale, "ConditionMedicale") {
PK(id) : integer
nom : string
description : text
type : type_condition
}
TABLE(PatientCondition, "PatientCondition") {
PK(FK(patient_id)) : integer
PK(FK(condition_id)) : integer
}
TABLE(MedecinDepartement, "MedecinDepartement") {
PK(FK(medecin_id)) : integer
PK(FK(departement_id)) : integer
}
Departement "1" -- "*" Infirmier
Departement "1" -- "*" Chambre
Patient "1" -- "*" Admission
Patient "1" -- "*" Consultation
Medecin "1" -- "*" Consultation
Consultation "1" -- "*" Prescription
Medicament "1" -- "*" Prescription
Patient "1" -- "*" ResultatExamen
TypeExamen "1" -- "*" ResultatExamen
Patient "1" -- "*" PatientCondition
ConditionMedicale "1" -- "*" PatientCondition
Medecin "1" -- "*" MedecinDepartement
Departement "1" -- "*" MedecinDepartement
@enduml
Diagramme
Création¶
Code
-- Création des types enum
CREATE TYPE type_condition AS ENUM ('allergie', 'condition_preexistante');
-- Création des tables
CREATE TABLE Departement
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
code VARCHAR(10) UNIQUE NOT NULL,
nom VARCHAR(100) NOT NULL
);
CREATE TABLE Patient
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
numero_dossier VARCHAR(50) UNIQUE NOT NULL,
nom VARCHAR(100) NOT NULL,
prenom VARCHAR(100) NOT NULL,
date_naissance DATE NOT NULL,
adresse TEXT
);
CREATE TABLE Medecin
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
numero_identification VARCHAR(50) UNIQUE NOT NULL,
nom VARCHAR(100) NOT NULL,
prenom VARCHAR(100) NOT NULL,
specialite VARCHAR(100)
);
CREATE TABLE Infirmier
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
numero_identification VARCHAR(50) UNIQUE NOT NULL,
nom VARCHAR(100) NOT NULL,
prenom VARCHAR(100) NOT NULL,
departement_id INTEGER NOT NULL REFERENCES Departement (id)
);
CREATE TABLE Chambre
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
numero VARCHAR(10) UNIQUE NOT NULL,
nombre_lits INTEGER NOT NULL,
departement_id INTEGER NOT NULL REFERENCES Departement (id)
);
CREATE TABLE Admission
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
date_entree DATE NOT NULL,
date_sortie_prevue DATE,
diagnostic_initial TEXT,
patient_id INTEGER NOT NULL REFERENCES Patient (id),
chambre_id INTEGER NOT NULL REFERENCES Chambre (id)
);
CREATE TABLE Consultation
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
date DATE NOT NULL,
heure TIME NOT NULL,
notes_medicales TEXT,
medecin_id INTEGER NOT NULL REFERENCES Medecin (id),
patient_id INTEGER NOT NULL REFERENCES Patient (id)
);
CREATE TABLE Medicament
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
nom VARCHAR(100) NOT NULL,
dosage VARCHAR(50),
instructions TEXT
);
CREATE TABLE Prescription
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
consultation_id INTEGER NOT NULL REFERENCES Consultation (id),
medicament_id INTEGER NOT NULL REFERENCES Medicament (id),
quantite INTEGER NOT NULL
);
CREATE TABLE TypeExamen
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
nom VARCHAR(100) NOT NULL,
description TEXT
);
CREATE TABLE ResultatExamen
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
date DATE NOT NULL,
description_resultats TEXT,
patient_id INTEGER NOT NULL REFERENCES Patient (id),
type_examen_id INTEGER NOT NULL REFERENCES TypeExamen (id)
);
CREATE TABLE EquipementMedical
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
numero_serie VARCHAR(50) UNIQUE NOT NULL,
nom VARCHAR(100) NOT NULL,
date_achat DATE NOT NULL,
date_derniere_maintenance DATE
);
CREATE TABLE ConditionMedicale
(
id INTEGER GENERATED BY DEFAULT AS IDENTITY PRIMARY KEY,
nom VARCHAR(100) NOT NULL,
description TEXT,
type type_condition NOT NULL
);
CREATE TABLE PatientCondition
(
patient_id INTEGER REFERENCES Patient (id),
condition_id INTEGER REFERENCES ConditionMedicale (id),
PRIMARY KEY (patient_id, condition_id)
);
CREATE TABLE MedecinDepartement
(
medecin_id INTEGER REFERENCES Medecin (id),
departement_id INTEGER REFERENCES Departement (id),
PRIMARY KEY (medecin_id, departement_id)
);
